SparkFun Edison Pi Block (DEV-13044)

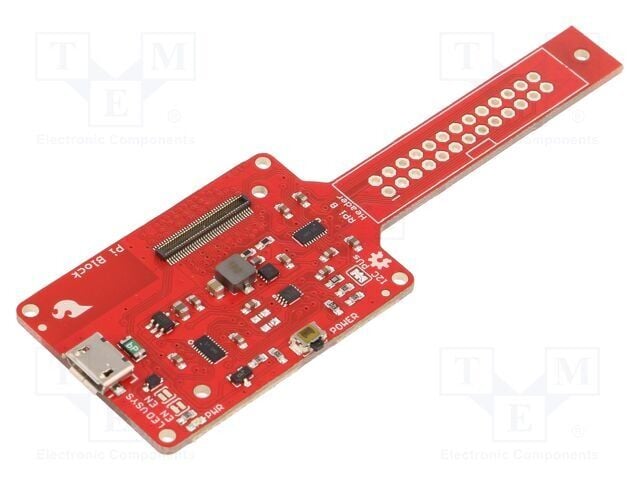

The Pi Block is a simple breakout board to bring the GPIO from the Intel Edison to the user. The Block provides level-shifted access to basic GPIO, PWM, UART, I2C, and SPI. The pins are presented in the same configuration as a Raspberry Pi Model B header.
Access to the GPIO pins can be accomplished through MRAA. The GPIO number listed on the board or Linux is not the same as MRAA. Refer to the table to see which GPIO pin maps to which number in MRAA.
MRAA pin map table based on Intel's IOT Dev Kit Repository
Pins on the Pi Block are denoted with a * after the GP number
- /Hardware - Eagle PCB layout files
- /Production - Files to support SparkFun production
- Hookup Guide - Basic hookup guide
- DEV-13044- Hardware version 1.0.
- V_1.0 - GitHub files version 1.0
This product is open source!
Please review the LICENSE.md file for license information.
If you have any questions or concerns on licensing, please contact techsupport@sparkfun.com.
